BZW120/65

Water Injection Pump for Coal Mine

High-pressure water injection pumps for coal mine

• Max. pressure: 65 MPa
• Max. flow: 120 L/min

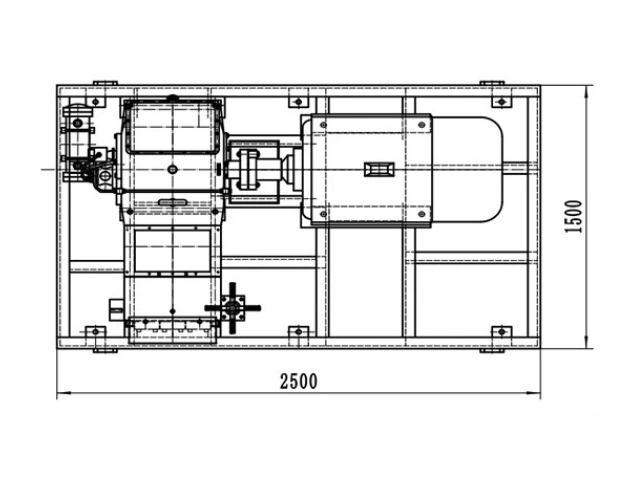

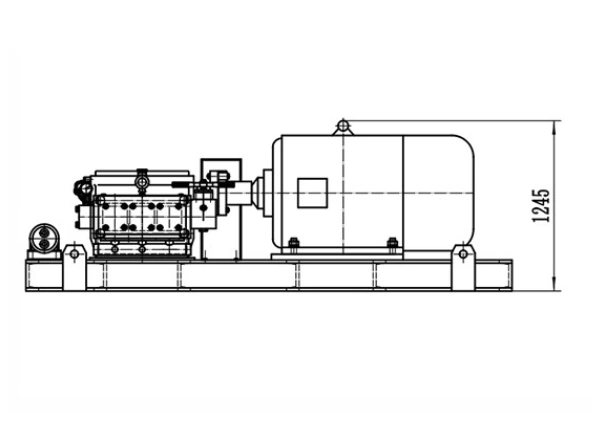

• Dimensions: 2500×1500×1245 mm
• Weight: 2200 kg

Request a Quote

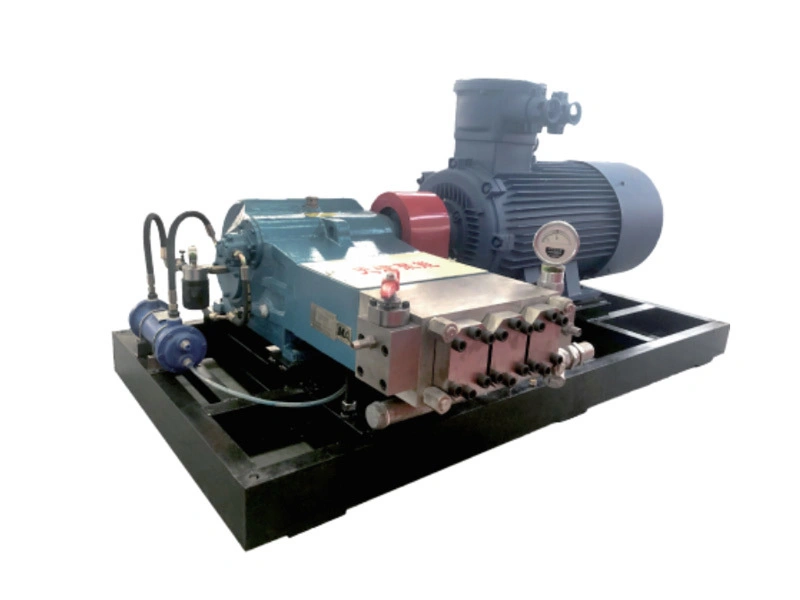

BZW120/65 water injection pump is one of Juneng’s primary plunger pump models and is equipped with an underground explosion-proof motor, making it suitable for mining applications. The pump adopts a direct-coupling design with a compact structure. A bearing bush structure is used between the crankshaft and connecting rod, and a forced lubrication system is configured to ensure sufficient lubrication of key components, enabling continuous operation.

The hydraulic end has been structurally optimized so that wear parts can be replaced without dismantling the pump head, making it particularly suitable for sites without lifting equipment. The plunger sealing section is equipped with a cooling system, effectively extending the service life of the plungers and seals. This product has obtained national safety certification for mining equipment.

Specifications

Item		Unit	Value
Model		/	BZW120/65
Rated Flow		L/min	120
Rated Pressure		MPa	65
Rated Pump Speed		strokes/min	366
Plunger Dia.		mm	35
Plunger Stroke		mm	120
Number of Plungers		pcs	3
Dimensions		mm	2500×1500×1245
Weight		kg	2200
Motor Power	Motor model	/	YBKE3-315L1-4
	Rated power	kW	160
	Rated voltage	A	660/1140
	Rated speed	r/min	1480

Juneng also provides alternative water injection pump models with similar structures, which can be selected according to on-site flow rate and pressure requirements.

No.	Item		Unit	Value
1	Model		/	BZW125/50	BZW160/40	BZW120/65	BZW160/63	BZW125/80
2	Rated Flow		L/min	125	160	120	160	125
3	Rated Pressure		MPa	50	40	65	63	80
4	Rated Pump Speed		strokes/min	366	366	366	366	366
5	Plunger Dia.		m	35	40	35	40	35
6	Plunger Stroke		m	120	120	120	120	120
7	No. of Plungers		pcs	3	3	3	3	3
8	Large Gear Teeth		pcs	93	93	93	93	93
9	Small Gear Teeth		pcs	23	23	23	23	23
10	Noise Level		dB(A)	103	103	103	104	104
11	Volumetric Eff.		%	88	88	88	91	91
12	Total Eff.		%	81	81	81	82	82
13	Dimensions		m	2500×1500×1130	2500×1500×1130	2500×1500×1245	2500×1500×1245	2500×1500×1245
14	Weight		kg	2100	2100	2200	2200	2200
15	Motor Power	Motor model	/	YBKE3-315W-4	YBKE3-315W-4	YBKE3-315L1-4	YBK3-315L1-4	YBK3-315L1-4
16		Rated power	kW	132	132	160	185	185
17		Rated voltage	V	660/1140	660/1140	660/1140	660/1140	660/1140
18		Rated speed	r/min	1480	1480	1480	1480	1480
19		Rated eff.	%	95.4	95.4	95.4	95.4	95.4

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.
