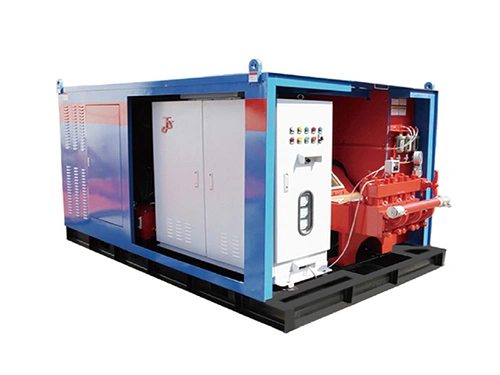

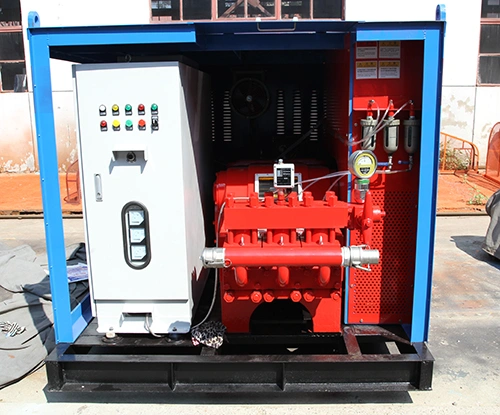

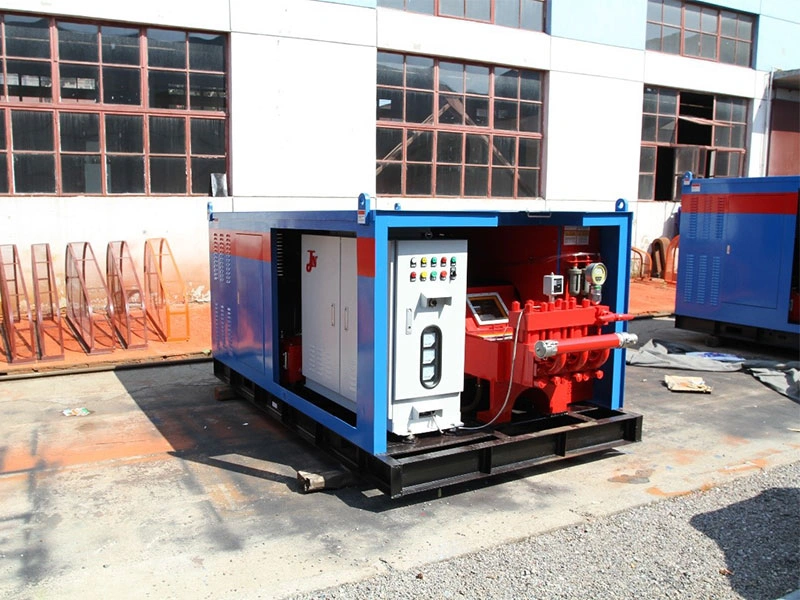

High-Pressure Jet Grouting Pump for RJP/MJS Deep Foundation

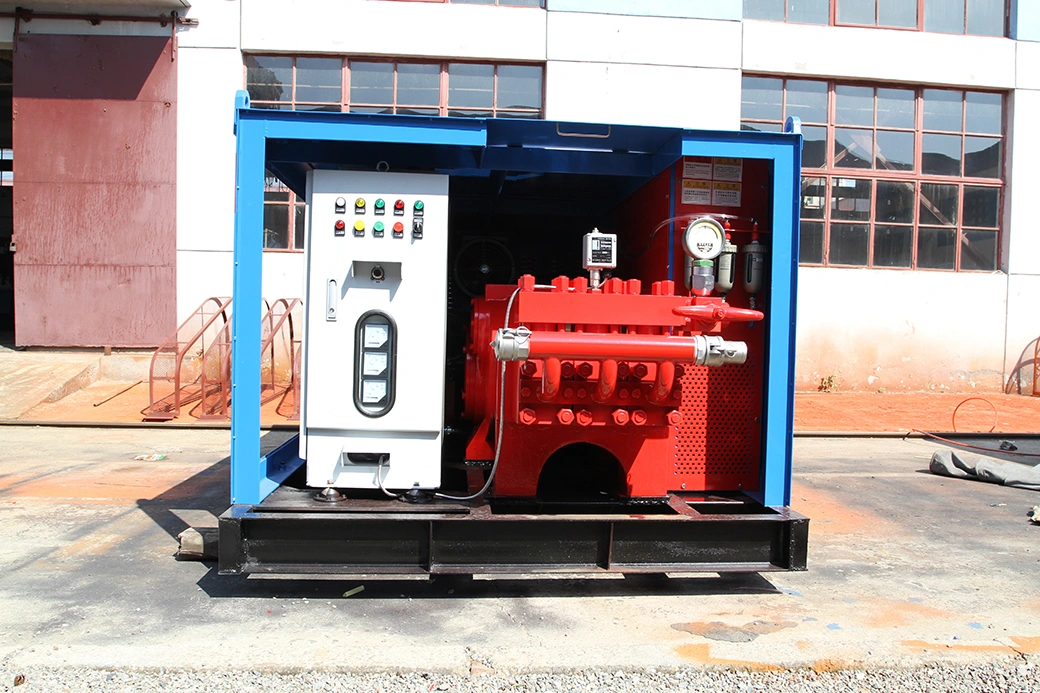

JNSG series high-pressure grouting pump is specially designed for RJP (High-pressure Jet Grouting Method) and MJS (Multi-directional High-pressure Jet Grouting Method) applications. These methods impose extremely high requirements for pressure stability, precise control, and equipment reliability. Therefore, this high-pressure grouting pump features multiple integrated intelligent control and protection systems to ensure efficient, safe, and trouble-free operation even in complex working conditions.

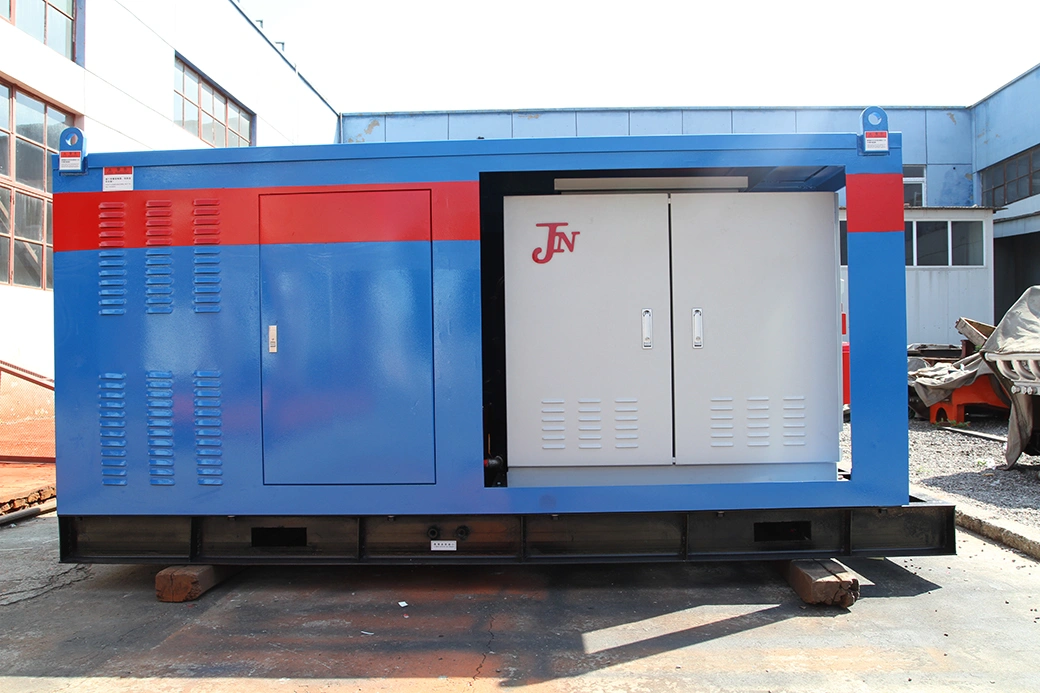

- Integrated enclosure housing structure effectively protects the equipment from harsh weather conditions, while also facilitating disassembly, maintenance, and lifting.
- Flexible variable-frequency motor configuration with optional 132 kW/185 kW/90 kW available. With integrated flow meters and pressure sensors to provide real-time feedback on rotation speed, slurry density, flow rate, and pressure, enabling precise adjustment and stable output of construction parameters.
- Equipped with comprehensive protection systems, such as ultra-high-pressure automatic shutdown, automatic water-reduction cooling system, and forced plunger lubrication system, providing all-round equipment protection, extending core component service life, and reducing unexpected downtime.
- Application Scenarios
- Specifications
- Customer Cases
The jet grouting pump for RJP/MJS is suitable for high-pressure jet grouting in:
- Ground treatment
- Curtain grouting
- Retaining cofferdams
- Mine leakage plugging
- Shaft lining protection
- Slope anchoring

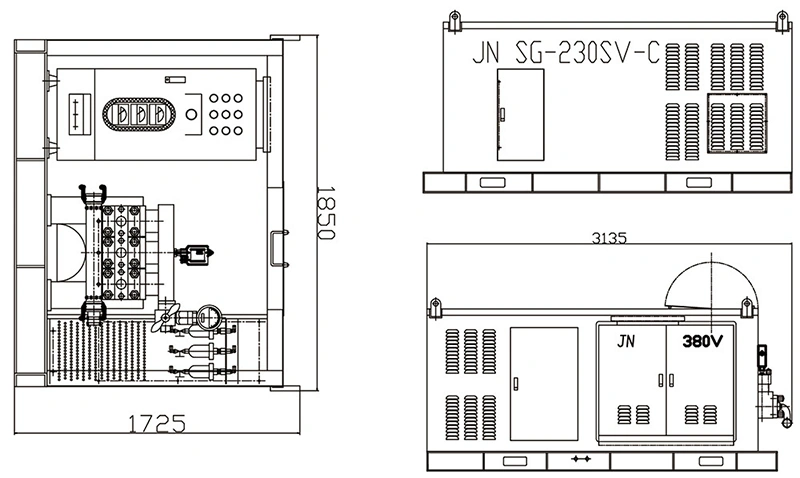

JNSG-230SV-C High-Pressure Jet Grouting Pump
- Motor: Variable frequency motor
- Motor Power (kW): 185
- Plunger Stroke (mm): 100
- Plunger Dia. (mm): 75
- Pressure (MPa): 45
- Flow Rate (L/min): 230
- Dimensions (mm): 3135×1850×1725
- Weight (kg): 5000
Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

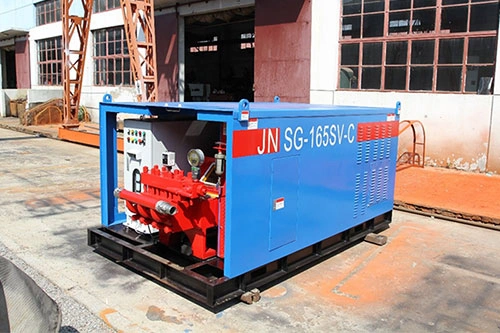

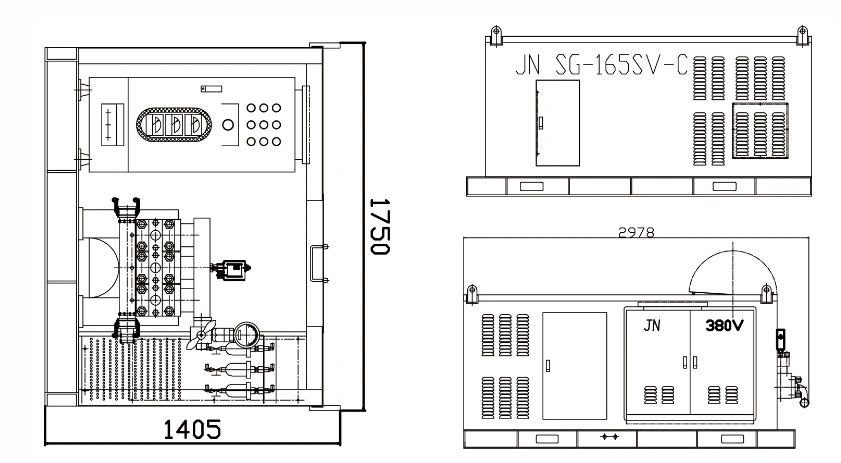

JNSG-165SV-C High-Pressure Jet Grouting Pump
- Motor: Variable frequency motor
- Motor Power (kW): 132
- Plunger Stroke (mm): 80
- Plunger Dia. (mm): 70
- Pressure (MPa): 43
- Flow Rate (L/min): 165
- Dimensions (mm): 2978×1750×1405
Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

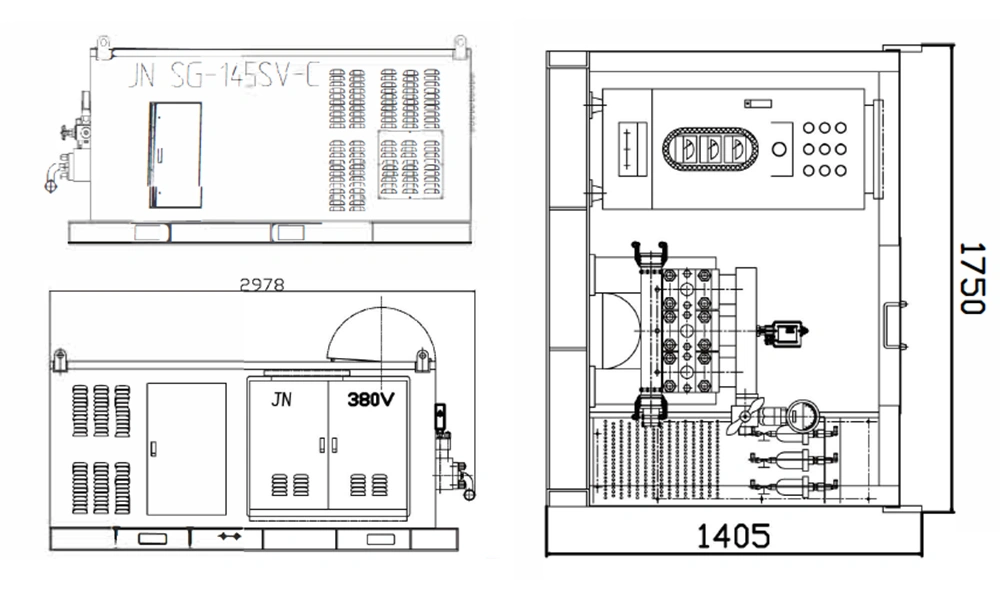

JNSG-145SV-C High-Pressure Jet Grouting Pump
- Motor: Variable frequency motor
- Max. flow: 145 L/min
- Motor Power (kW): 90
- Plunger Stroke (mm): 80
- Plunger Dia. (mm): 65
- Pressure (MPa): 33
- Flow Rate (L/min): 145
- Dimensions (mm): 2978×1750×1405
Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

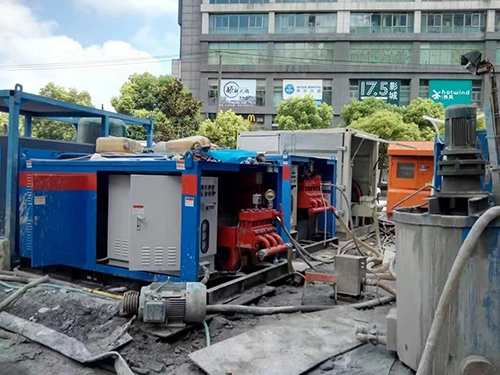

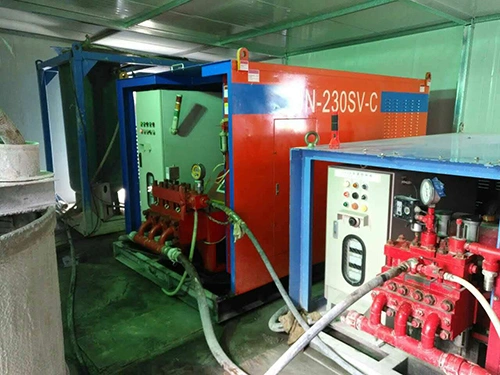

Shanghai metro construction project: high-pressure grouting pumps were used to perform grouting reinforcement, void filling, and water-leakage prevention operations.
