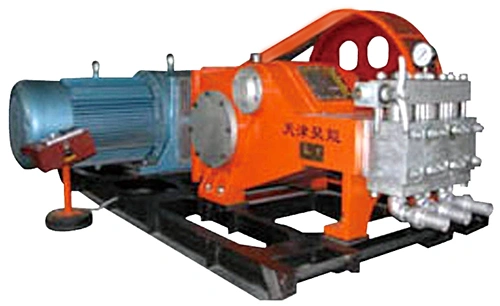

High-Pressure Profile Control Pump
High-flow plunger pump for high-pressure injection of profile control agents in oilfields, delivering flow rates up to 900L/min
- Max. pressure: 55 MPa
- Max. flow: 900 L/min
YTB series high-pressure profile control pump is a newly developed product designed to meet high-pressure output and large-flow delivery requirements simultaneously. The hydraulic end adopts a split combined pump head structure, allowing easy disassembly and maintenance. The power end utilizes a rolling bearing transmission between the connecting rod and crankshaft and features a reinforced structural design, low noise levels, and environmentally friendly operation.
With minimal temperature rise, the pump ensures continuous 24-hour operation, simplified maintenance, and improved cost-performance. It is suitable for coal seam subsidence treatment, oilfield profile control operations, and high-pressure, large-flow grouting applications, making it a dedicated solution for oilfield profile modification.
- Cement slurry: Foundation reinforcement, diaphragm wall grouting, and crack filling
- Water: High-pressure water jet cutting
- Chemical solutions: Anti-seepage, plugging, and chemical reinforcement
| Plunger Stokes (mm) | 100 | Plunger Dia. (mm) | 85 |
| No. of Plungers | // | 3 | // |
| Motor Power (kW) | 90 | 110 | 132 |
| Motor Speed (r/min) | 600-1340 | 650-1350 | 650-1350 |
| Max. Theoretical Flow (L/min) | 308 | 310 | 310 |
| Rated Pressure (MPa) | 13 | 18 | 22 |

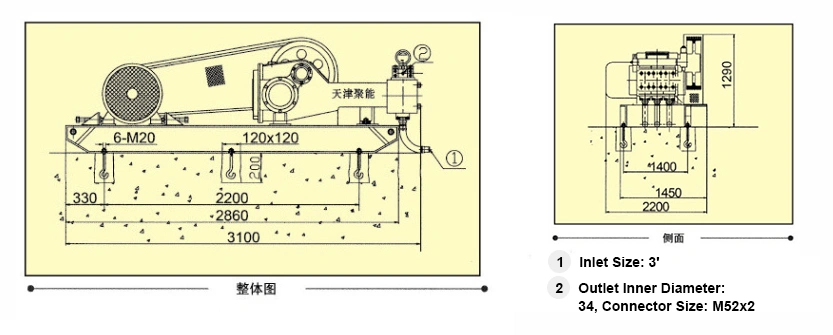

| Dimensions (mm) | 3100×2200×1290 | ||
