Polymer Injection Pump Unit for Oilfield
Integrated high-pressure pump system for injecting polymers, gels, and microspheres to improve oil recovery
- Max. pressure: 60 MPa
- Max. flow: 300 L/min

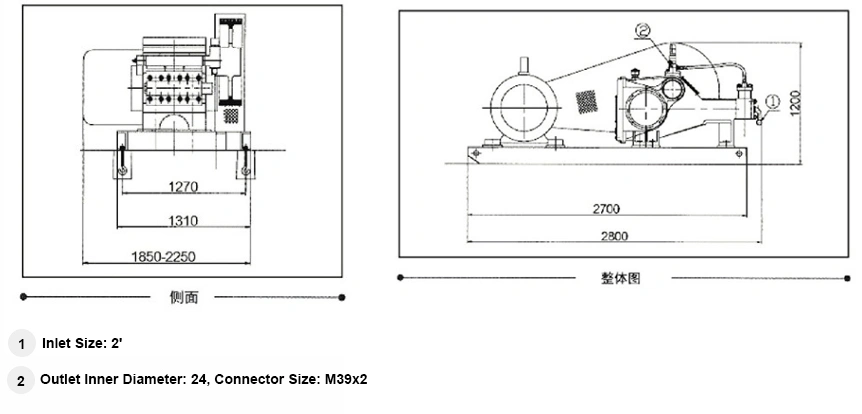

- Dimensions: 2800×2250×1200 mm
Request a Quote
This polymer injection pump unit is specially designed for long-term continuous operation. Its dedicated high-pressure injection system for oilfield profile control operations is mainly used to inject conditioning agents—such as polymers, gels, and microspheres—into oil reservoirs to adjust formation water absorption profiles and enhance crude oil recovery.

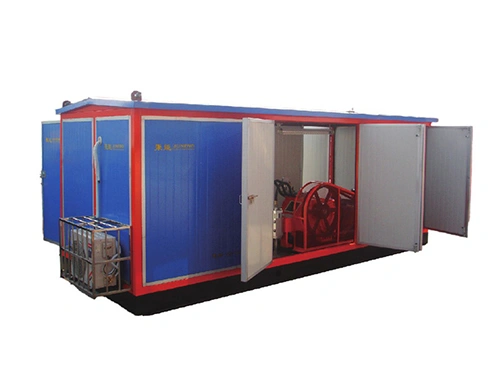

To support extended operation, the injection pump system is equipped with an air-conditioned, enclosed operating room. It integrates a flowmeter, pressure sensors, and a high-definition LCD display, enabling direct, real-time monitoring of flow rate and pressure values.
Applicable Fluid Media
- Cement slurry: Foundation reinforcement, diaphragm wall slurry, and fracture filling
- Water: High-pressure water jet cutting
- Chemical solutions: Anti-seepage treatment, plugging, and chemical reinforcement
Parameter Table
| Input Speed (r/min) | 1320 | Plunger Stroke (mm) | 80 | ||||||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | |||||||
| 55 | 75 | 90 | 110 | 132 | |||||
| m³/h | L/min | Rated Pressure (MPa) | |||||||
| 13 | 217 | 12 | 17 | 20 | 25 | 30 | 80 | ||
| 11 | 188 | 14 | 19 | 23 | 28 | 34 | 75 | ||
| 9.9 | 165 | 16 | 22 | 26 | 32 | 39 | 70 | ||
| 8.6 | 141 | 18 | 25 | 31 | 38 | 45 | 65 | ||
| 7.1 | 119 | 22 | 30 | 37 | 45 | 50 | 60 | ||
| 6.0 | 100 | 26 | 37 | 44 | 53 | 56 | 55 | ||
| 5.0 | 83 | 32 | 44 | 53 | 60 | 60 | 50 | ||
