XPB-90E
High-Pressure Profile Control Pump
Heavy-duty plunger pump for for oilfield profile modification, ensuring 24/7 continuous operation
- Max. pressure: 60 MPa
- Max. flow: 300 L/min

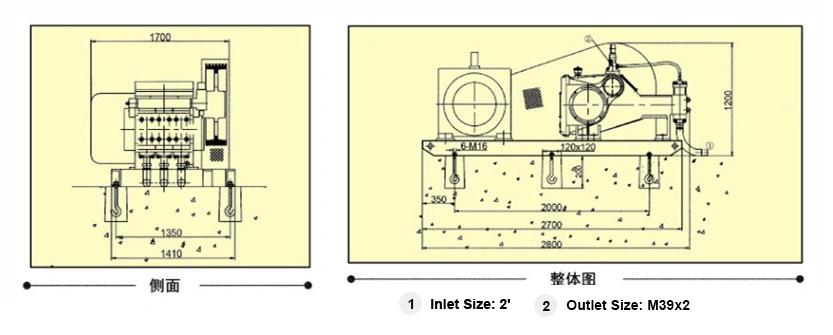

- Dimensions: 2800×1700×1200 mm
Request a Quote

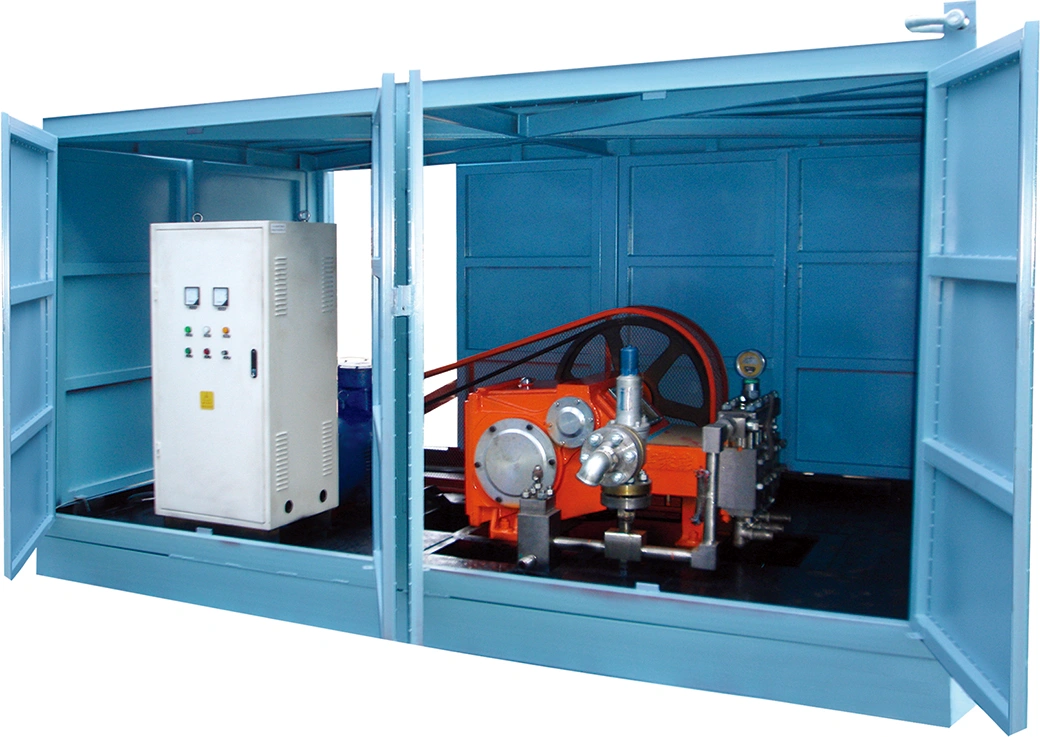

XPB-90E profile control pump is a new model developed for continuous operation without shutdown. The power end adopts an integral bearing structure, making it suitable for long-term operation with low temperature rise and low noise. Among products of the same class, it offers a highly cost-effective solution. The hydraulic end uses ball valves, which significantly extend the service life of wear parts.
Applicable Fluid Media
- Cement slurry: Foundation reinforcement, diaphragm wall grouting, and crack filling
- Water: High-pressure water jet cutting
- Chemical solutions: Anti-seepage treatment, plugging, and chemical reinforcement
Parameter Table
| Motor Speed (r/min) | 1320 | Plunger Stroker (mm) | 80 | ||||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | |||||
| 55 | 75 | 90 | 110 | 132 | |||
| m³/h | L/min | Rated Pressure (MPa) | |||||
| 13 | 217 | 12 | 17 | 20 | 25 | 30 | 80 |
| 11 | 188 | 14 | 19 | 23 | 28 | 34 | 75 |
| 9.9 | 165 | 16 | 22 | 26 | 32 | 39 | 70 |
| 8.6 | 141 | 18 | 25 | 31 | 38 | 45 | 65 |
| 7.1 | 119 | 22 | 30 | 37 | 45 | 50 | 60 |
| 6.0 | 100 | 26 | 37 | 44 | 53 | 56 | 55 |
| 5.0 | 83 | 32 | 44 | 53 | 60 | 60 | 50 |
