XPB-10

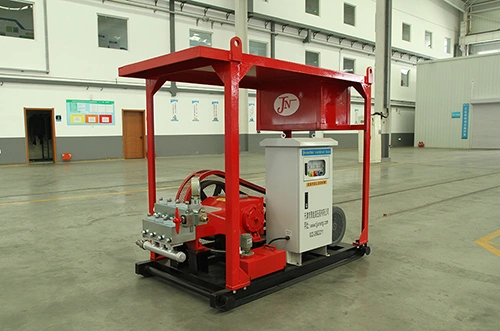

Low-Pressure Jet Grouting Pump

Dual-Liquid
  • Max. pressure: 9.5 MPa
  • Max. flow: 160 L/min
Single-Liquid
  • Max. pressure: 12 MPa
  • Max. flow: 182 L/min

XBP-10 series low-pressure grouting pump is specifically designed for low-pressure, high-volume operating conditions. It is a reliable solution for compaction grouting, secondary grouting, and dual-liquid grouting applications. The pump is available in single-liquid, dual-liquid, and triple-liquid low-pressure configurations to meet diverse project requirements.

Features
  • Each working cylinder adopts an independent slurry intake and discharge system, meeting various multi-liquid grouting requirements
  • Each discharge pipeline is equipped with a check valve at the front end to prevent different liquids from mixing inside the pump, effectively avoiding operational failures caused by premature solidification
  • The check valve is installed close to the working surface, enhancing operational safety
  • Constructed with corrosion-resistant materials
  • Three-plunger design ensures stable working pressure, while ball valves provide long service life, reliable sealing performance, and convenient maintenance
Specifications

All pump models can be customized into triple-liquid configurations. The parameters shown below represent only one configuration example. You may select parameter combinations that meet your construction requirements, or contact us directly for free recommendations on parameter configuration.

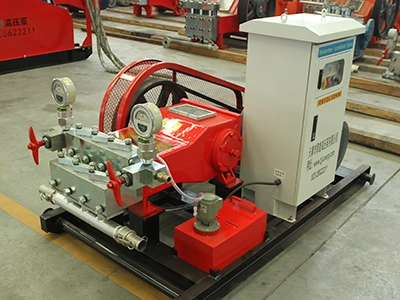

XPB-10 Dual-Liquid Low-Pressure Grouting Pump

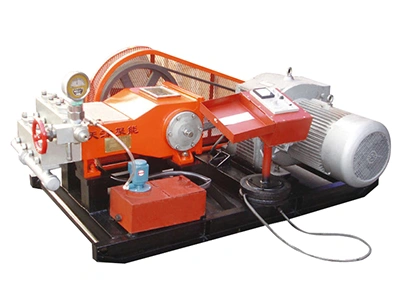

Dual-Liquid Low-Pressure Grouting Pump

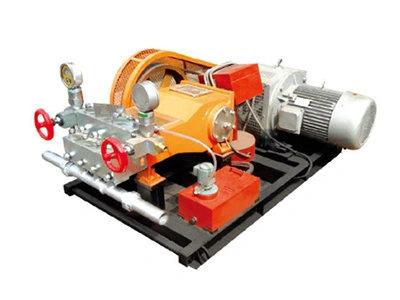

Dual-Liquid Low-Pressure Grouting Pump
Dual-Liquid Low-Pressure Grouting Pump
Input Speed (r/min) 1300 Plunger Stroke (mm) 85
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
11 15 18.5 22
m³/h L/min Rated Pressure (kgf/cm²)
9.6 160 25 35 45 52 50
7.8 130 32 45 55 65 45
6 100 46 55 70 85 40
5.4 90 50 65 80 95 38
4.8 80 58 80 95 - 35
3.3 55 80 - - - 30

Note: The above parameters are theoretical data based on a medium specific gravity of 1.0.

XPB-10 Single-Liquid Low-Pressure Grouting Pump

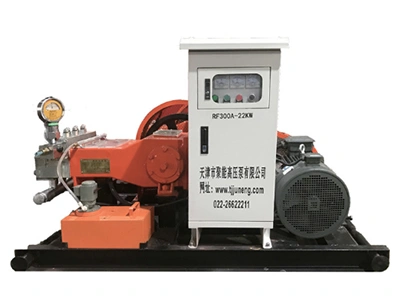

Single-Liquid Low-Pressure Grouting Pump

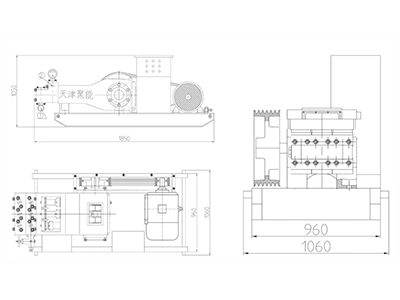

Single-Liquid Low-Pressure Grouting Pump
Variable-Frequency Motor Version
Input Speed (r/min) 1460 Plunger Stroke (mm) 85
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
11 15 18.5 22
m³/h L/min Rated Pressure (kgf/cm²)
10.9 182 31 42 52 62 50
8.8 147 38 53 65 77 45
6.9 116 49 67 82 98 40
6.3 105 54 74 91 108 38
5.3 89 64 87 108 - 35
3.9 65 88 120 - - 30
Electromagnetic Speed Regulation Motor Version
Input Speed (r/min) 1300 Plunger Stroke (mm) 85
Theoretical Flow Motor Power (kW) Plunger Dia. (mm)
11 15 18.5 22
m³/h L/h Rated Pressure (kgf/cm²)
9.6 160 25 35 45 52 50
7.8 130 32 45 55 65 45
6 100 46 55 70 85 40
5.4 90 50 65 80 95 38
4.8 80 58 80 95 - 35
3.3 55 80 - - - 30

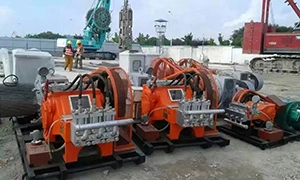

Customer Cases
