Jet Grouting Drilling Rigs
By combining different functional modules, Juneng has developed a new generation of high-pressure jet grouting drilling rigs capable of supporting fixed-jet, swing-jet, and rotary-jet grouting construction methods.
SJW-100 High-pressure Jet Grouting
- Single drilling depth: 30 m
- Overall height: 33.8 m
- Optional extended height: 36.8 m
| Module | Specifications | | ||
| Construction | Single drilling path (m) | 30 | ||
| Drill pipe diameter (mm) | ø73, ø89, ø114, ø127 | |||
| Pile diameter (mm) | ≤3500 | |||
| Drilling angle (°) | 90 | |||
| Main Machine (Drill) | Motor power (kW) | 55+15 | ||
| Transport dimensions ((L×W×H) mm) | 9700*2100*2800 | |||
| Working dimensions ((L×W×H) mm) | 6300*4100*33800 | |||
| Weight (kg) | 12000 | |||
| Intelligent Module | Standard automatic drilling and rotary jet spraying; optional drilling parameter monitoring system | |||
SJW-80 High-Pressure Grouting Pump (equipped with removable 25 m auxiliary mast)
- Single drilling depth: 30 m
- Overall height: 32.5 m
- Optional extended height: 35.5 m
| Specifications | |
| Jet-Grouting Process | Single, double, triple |
| Pile Diameter (mm) | 400~600,600~1500,800~1500 |
| Max. Output Speed (r/min) | 125 |
| Max. Output Torque (N·M) | 7000 |
| Elevating Force of Main Winch | 20 |
| Elevating Force of Auxiliary Winch | 5 |
| Input Motor Power (kW) | 45+15 |
| Transport Dimensions ((L×W×H) mm) | 7200*2350*2720 |
| Working Dimensions ((L×W×H) mm) | 6200*3900*32500 |
| Weight (kg) | 9000 |
| Drilling Parameter Meter | Optional |
| Tower Configuration | 3×5 m steel mast + 2×5 m aluminum mast (+1×3 m steel mast) |
SJL-60 High-Pressure Jet Grouting (equipped with removable 10 m auxiliary mast)
- Rated output torque (Nm): 7000
- Rated speed (r/min): 100
- Feeding stroke (mm): 3400
| Specifications | |
| Rated Output Torque (N·m) | 7000 |
| Rated Speed (r/min) | 100 |
| Feeding Stroke (mm) | 3400 |
| Input Motor Power (kW) | 45 |
| Transport Dimensions ((L×W×H) mm) | 5350*2100*2300 |
| Working Dimensions ((L×W×H) mm) | 3600*2500*15350 |
| Weight (kg) | 7000 |

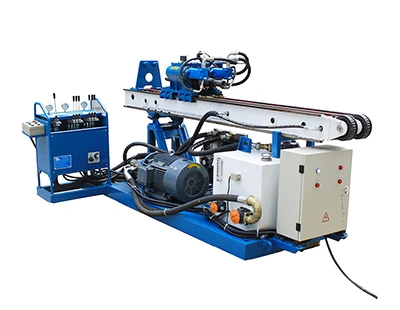

SJ-25A Jet Grouting Drilling Rig
Dual-motor rotary drive design for higher torque, with peak torque reaching 3500 N·m
| Module | Specifications | |
| Jet Grouting Mode | Pile diameter (mm) | Single: 400–600 mm, double: 600–1200 mm, triple: 800–1600 mm |
| Hole depth (m) | 20~40 | |
| Anchoring Mode | Hole diameter (mm) | ø90~ø168 |
| Hole depth (m) | 30~60 | |
| Jet Grouting & Anchoring | Drilling angle (°) | 0~90 |
| Max. Output Torque (N·M) | 3500 | |
| Max. Output Speed (r/min) | 95 | |
| Lifting force of power head (kN) | 40 | |
| Feeding force of power head (kN) | 25 | |
| Lifting speed (m/min) | 0~1.5, 9, 11 | |
| Pressurizing speed (m/min) | 2.5, 15, 18 | |
| Stroke of power head (mm) | 2300 | |
| Motor power (kW) | 22+1.5 | |
| Working dimensions ((L×W×H) mm) | 3100*1500*3750 | |
| Transport dimensions ((L×W×H) mm) | 3100*1500*1500 | |
| Weight (kg) | 1400 | |
| Mounting type | Track-mounted |

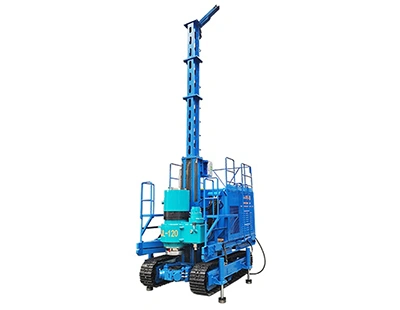

SJL-120 Crawler Drilling Rig
SJL-120 crawler drilling rig is suitable for the MJS (Metro Jet System) construction application. It employs a unique multi-hole drill pipe and drill bit to achieve forced slurry discharge and underground pressure monitoring inside the borehole. By forcibly adjusting the slurry discharge volume to control underground pressure, it significantly reduces impacts on the surrounding ground environment and guarantees the diameter of the constructed piles underground.
| Specifications | |
| Hole Diameter (mm) | Ø225 |
| Hole Depth (m) | 0-60 |
| Drilling Angle (°) | 90 |
| Pile Diameter (mm) | Ø90, Ø114, Ø142, Ø170, Ø216 |
| Max. Output Torque (N·M) | 12000 |
| Max. Output Speed (r/min) | 40 |
| Input Motor Power (kW) | 37 |
| Transport Dimensions ((L×W×H) mm) | 2755*2020*2710 |
| Vertical Working Dimensions ((L×W×H) mm) | 2755*2020*6210 |
| Weight (kg) | 6400 |
| Auxiliary Tower | 600 kg, 3.5m (optional) |

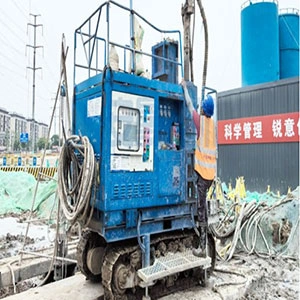

SJ-25A in Jet Grouting Reinforcement Application in Guangxi

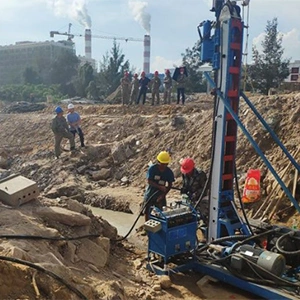

SJL-120 Jet Grouting Drilling Rig for Large-Diameter Low-Disturbance Construction in Wuxi, Jiangsu
