MXL-150D6
Hydraulic Crawler Multi-Functional Drilling Rig
MXL-150D6 multi-functional drilling rig is a newly developed model based on the existing MXL series. It is specifically designed to integrate jet grouting, anchoring, and anti-uplift anchor construction into a single operating sequence, meeting the requirements of complex foundation engineering projects.
Request a Quote
Features

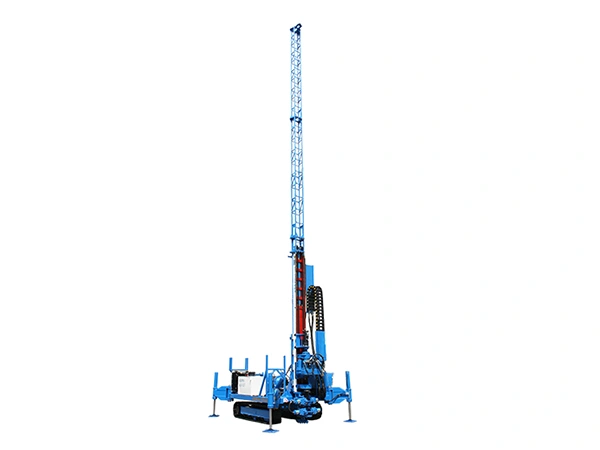

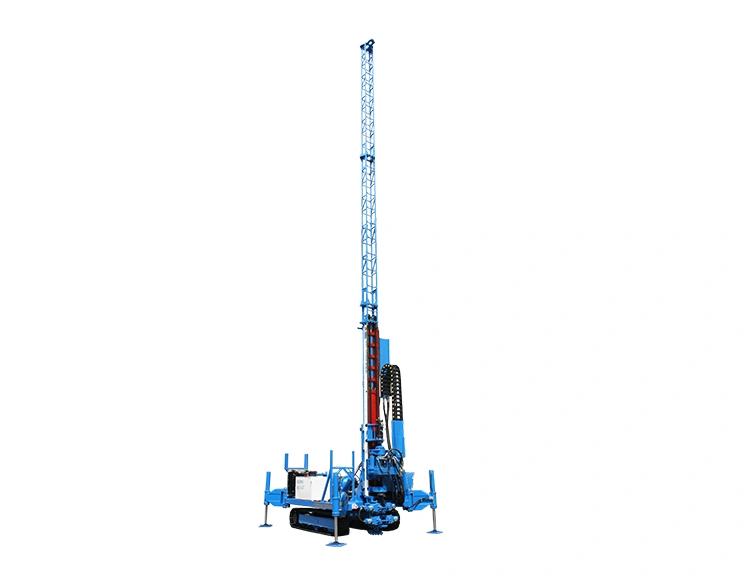

Detachable 10-Meter Auxiliary Mast
- During jet grouting operations, the drilling rig can replace high-mast jet grouting, decreasing the frequency of drill rod disassembly to save time and materials while lowering quality risks
- During anti-uplift anchor construction, the auxiliary mast enables direct lifting of anchor rods, which reduces crane usage costs
- The detachable auxiliary mast can be removed during inclined anchoring construction without affecting other drilling functions
- For short anchor construction, one-rod-to-depth drilling is possible, which improves efficiency and reduces labor intensity

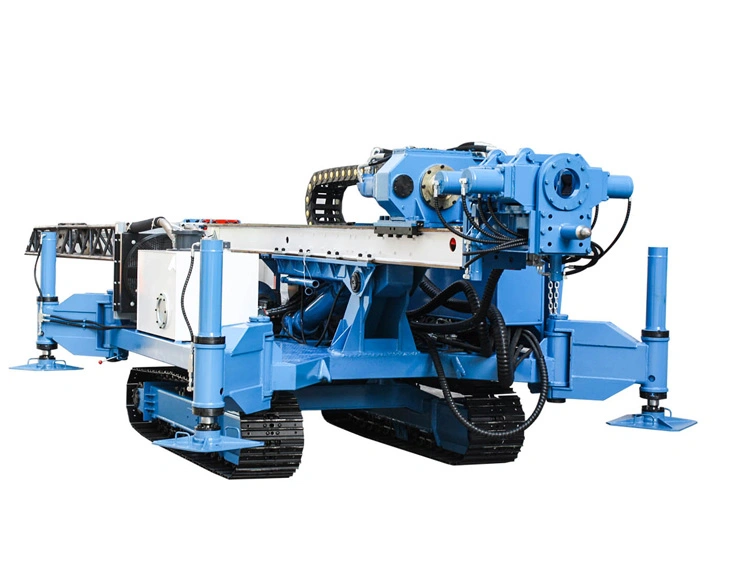

Large-Diameter Through-Hole Rotary Head
- Features a through-hole diameter of 92 mm, allowing smooth passage of Ø89 mm drill rods, enabling double and triple jet grouting as well as anchoring operations
- Standard 89 mm diameter steel pipes can be directly used for anchoring construction
- Hydraulic chuck structure allows fast and flexible tool replacement without intermediate adapters
- High-torque power head combined with reinforced jet grouting tools enables jet grouting in most soil layers without pre-drilling, significantly reducing construction cost and time

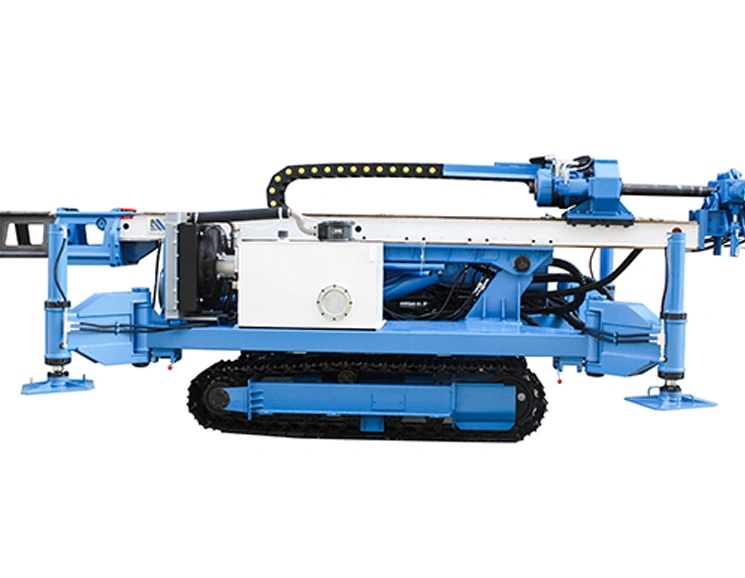

Crawler Traveling System
- Equipped with wide crawler tracks and low ground pressure, ensuring stable movement even on soft ground surfaces.
Borehole Guidance System
- Ensures accurate borehole angle and verticality during jet grouting while allowing convenient tool replacement
- Improves stress distribution on drill rods during anchoring, ensuring high construction accuracy
- Equipped with a rotating borehole guidance mechanism to reduce drill tool wear
Parameter Table
| Specifications | MXL-150D6 |
| Hole Diameter (mm) | ø73, ø89 |
| Length of Joint Pipe (m) | 13 |
| Drilling Angle (°) | 0~90 |
| Max. Output Torque (N·M) | 130 |
| Max. Output Speed (r/min) | 7000 |
| Power Head Stroke (mm) | 3400 |
| Lifting Force (kN) | 70 |
| Lifting Speed (m/min) | 0~5/22 |
| Feeding Force (kN) | 36 |
| Feeding Speed (m/min) | 12/24 |
| Winch lifting force (kN) | 10 |
| Input Motor Power (kW) | 55+22 |
| Transport Dimensions ((L×W×H) mm) | 5900*2200*2350 |
| Weight (kg) | 7500 |
