Top-Drive Multi-Functional Drilling Rig
HDL series top-drive multi-functional drilling rigs are developed by Juneng to meet market demand and are specifically designed for operation in complex geological conditions.

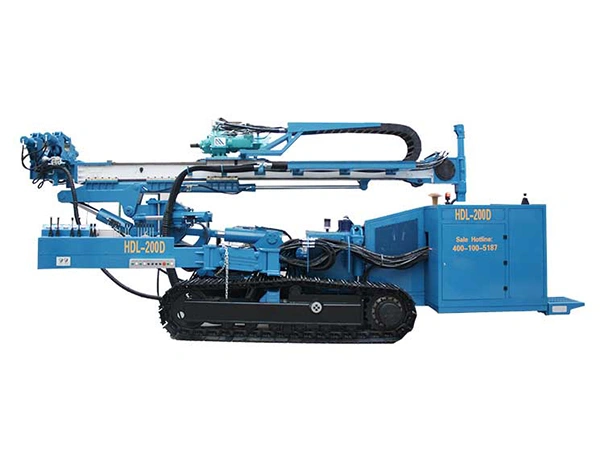

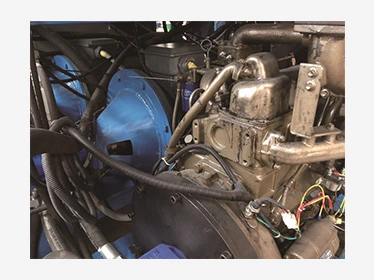

HDL-200D Top-Drive Multi-Functional Drilling Rig
| Specifications | |
| Hole Diameter (mm) | ø100~ø250 |
| Hole Depth (m) | 180~220 |
| Drill Angle (°) | -30~105 |
| Pile Diameter (mm) | Ø73, Ø89, Ø102, Ø114, Ø146, Ø168, Ø194, Ø219 |
| Gripper Diameter (mm) | Ø73～Ø250 |
| Max. Output Torque (N·M) | 14000 |
| Max. Output Speed (r/min) | 80 |
| Lifting Speed (m/min) | 0~10, 40 |
| Feeding Speed (m/min) | 0~10, 40 |
| Input Motor Power (kW) | 55+55 |
| Input Diesel Power (kW) | 50 |
| Fuel Tank Capacity (L) | 90 |
| Transport Dimensions ((L×W×H) mm) | 7500*2400*3000 |
| Vertical Working Dimensions ((L×W×H) mm) | 6200*2400*7300 |
| Weight (kg) | 16800 |
- The power head is equipped with a high-power top-impact mechanism, enabling efficient percussive drilling without the need for down-the-hole hammers or air compressors, resulting in high drilling efficiency and excellent borehole quality.
- Multi-angle adjustment capability meets drilling requirements at various construction angles, offering flexible and convenient operation.
- Drilling tools transmit impact energy uniformly from the outer section to the inner section, effectively reducing risks such as tool sticking or burial, thereby lowering construction risk and cost.
- Delivering high torque, high rotational speed, and strong impact power, making it suitable for most geological formations, especially cobble layers, crushed rock layers, boulder-mixed soils, and sand layers that rely on impact drilling for hole formation. The drilling rig provides fast penetration and high hole-forming quality. In water-rich formations where down-the-hole impact tools cannot operate reliably, this rig becomes the preferred construction solution.
- Equipped with a mobile operator platform, the rig offers simple and flexible operation, allowing operators to conveniently observe the borehole and ensure stable, safe construction.

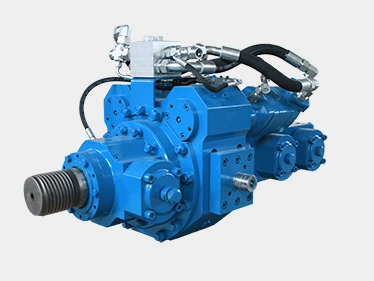

High-efficiency top-impact power head
Peak impact energy: 900 N·m
Peak impact frequency: 2100 bpm
Peak torque: 14,000 N·m
Peak rotational speed: 80 r/min

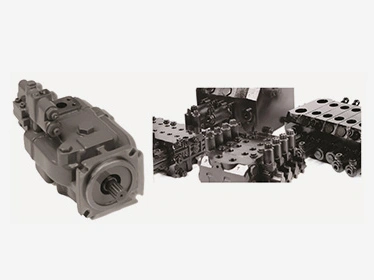

Imported hydraulic system ensuring stable and reliable performance
Electric motor working system or diesel travel system available

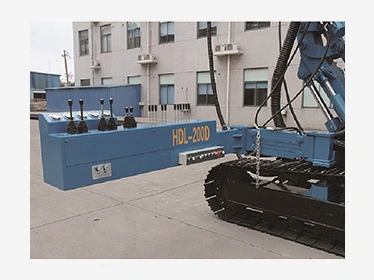

Swing-arm operating platform for convenient, flexible, and stable operation

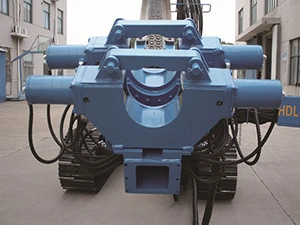

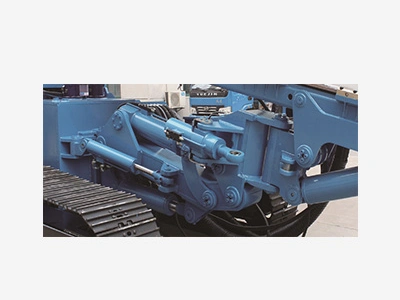

Variable-angle mechanism adaptable to diverse engineering requirements
Large-diameter (250 mm) gripper, facilitating large-diameter borehole construction

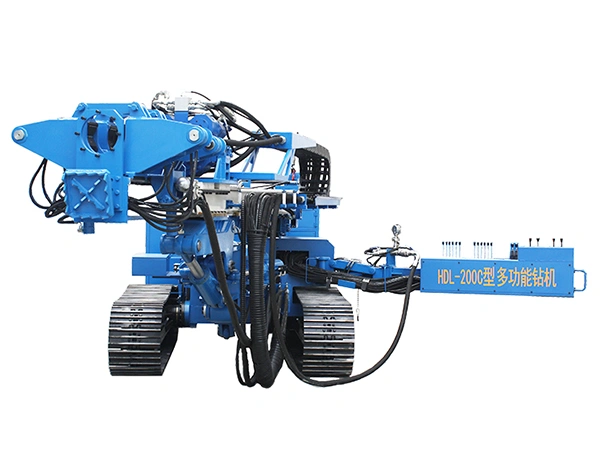

HDL-200C Top-Drive Multi-Functional Drilling Rig
| Specifications | |
| Pile Diameter (mm) | Ø73~Ø219 |
| Gripper Diameter (mm) | Ø73~Ø300 |
| Max. Output Torque (N·M) | 25000 |
| Max. Output Speed (r/min) | 308 |
| Lifting Speed (m/min) | 0~10, 50 |
| Feeding Speed (m/min) | 0~10, 50 |
| Input Diesel Power (kW) | 194 |
| Transport Dimensions ((L×W×H) mm) | 9000*2400*2750 |
| Vertical Working Dimensions ((L×W×H) mm) | 6600*2400*21300 |
| Weight (kg) | 17000 |
- The power head provides high-power top impact, achieving effective impact drilling without down-the-hole hammers or air compressors.
- Equipped with an internationally proven variable-angle mechanism, enabling flexible angle adjustment and broad applicability for both domestic and overseas projects, especially tunnel construction.
- Uniform impact energy transmission through the drilling tools reduces drilling accidents such as stuck or buried tools, lowering construction risks and costs.
- The rig offers high torque, high speed, and strong power output, enabling rapid drilling in cobble layers, crushed rock, boulder-mixed soils, and sand layers. In formations with excessive groundwater where down-the-hole impact tools are ineffective, this rig provides an irreplaceable construction advantage.

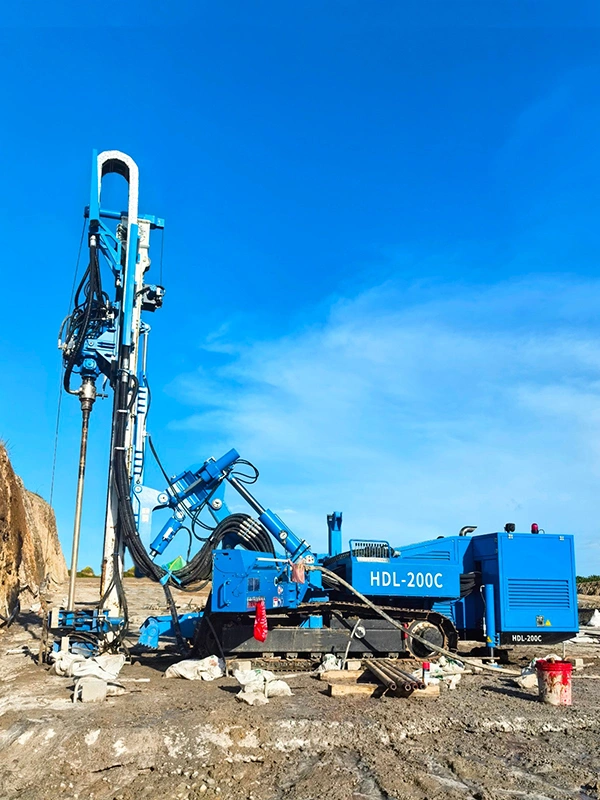

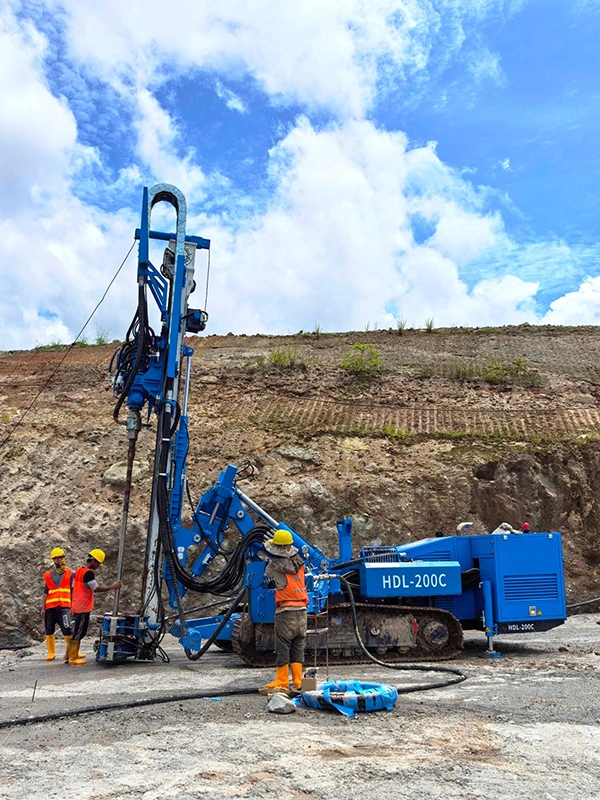

HDL-200C top-drive drilling rig in overseas projects for large cut-off wall and reinforced concrete anchoring construction application.
