JN200K/JN200Q

High Pressure Washer

Skid-mounted or trailer-mounted water blasters for high-efficiency cleaning of ship hulls, boilers, and heat exchangers

JN200K/JN200Q series of high-pressure washers features a compact structure, small footprint, and high efficiency. The power end adopts forced lubrication, with the high-speed shaft and crankshaft driven by herringbone gears, ensuring stable and reliable transmission. The design reduces friction, improves lubrication performance, lowers noise, and minimizes temperature rise, making it suitable for long-term continuous operation. The fluid end is easy to disassemble and maintain.

These washers are suitable for ultra-high-pressure water jet cleaning, metal cutting, ship hull descaling, and cleaning of equipment in chemical plants, sugar plants, and power plants, including condensers, heat exchangers, and reactors. They can also be used for pumping water, emulsions, and other liquids with water-like properties.

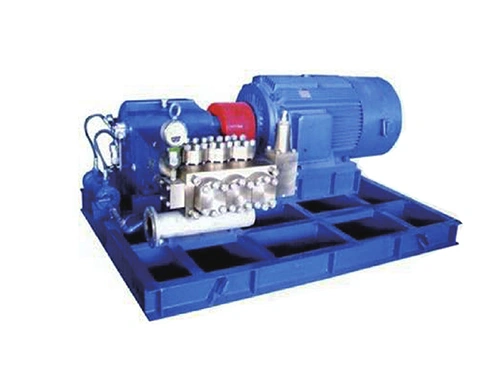

High-Pressure Washer JN200K

  • Max. pressure: 45 MPa
  • Max. flow: 585 L/min

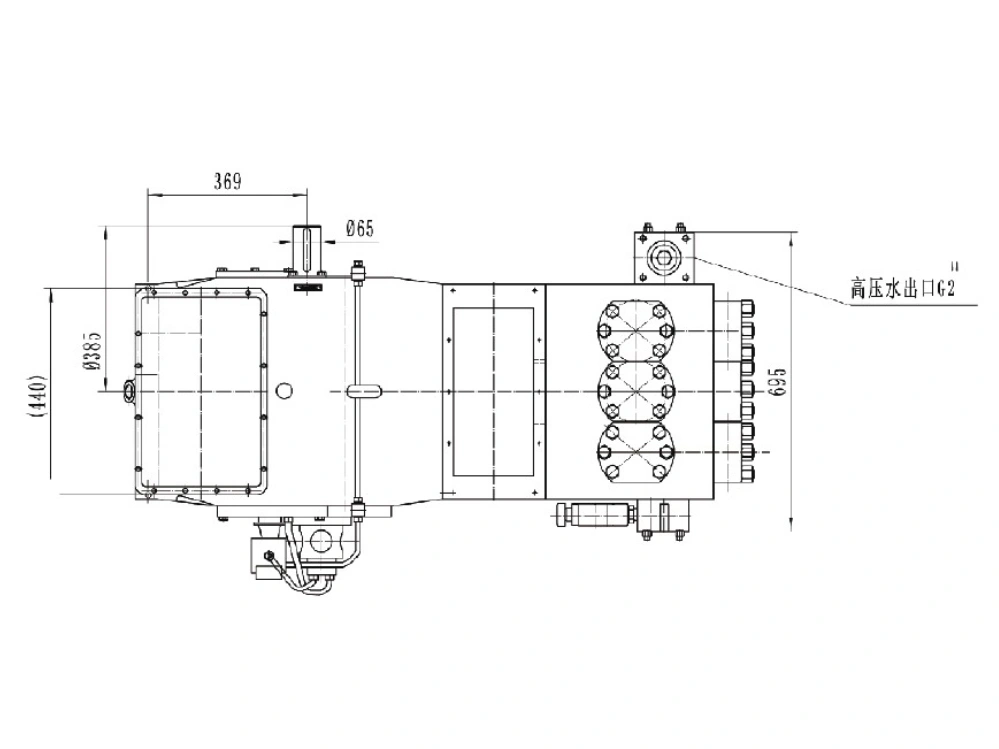

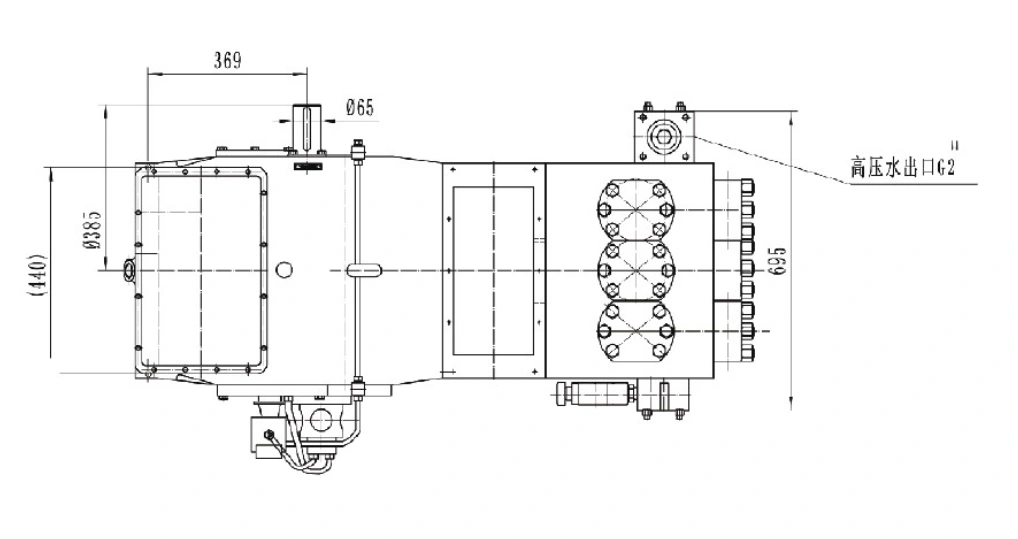

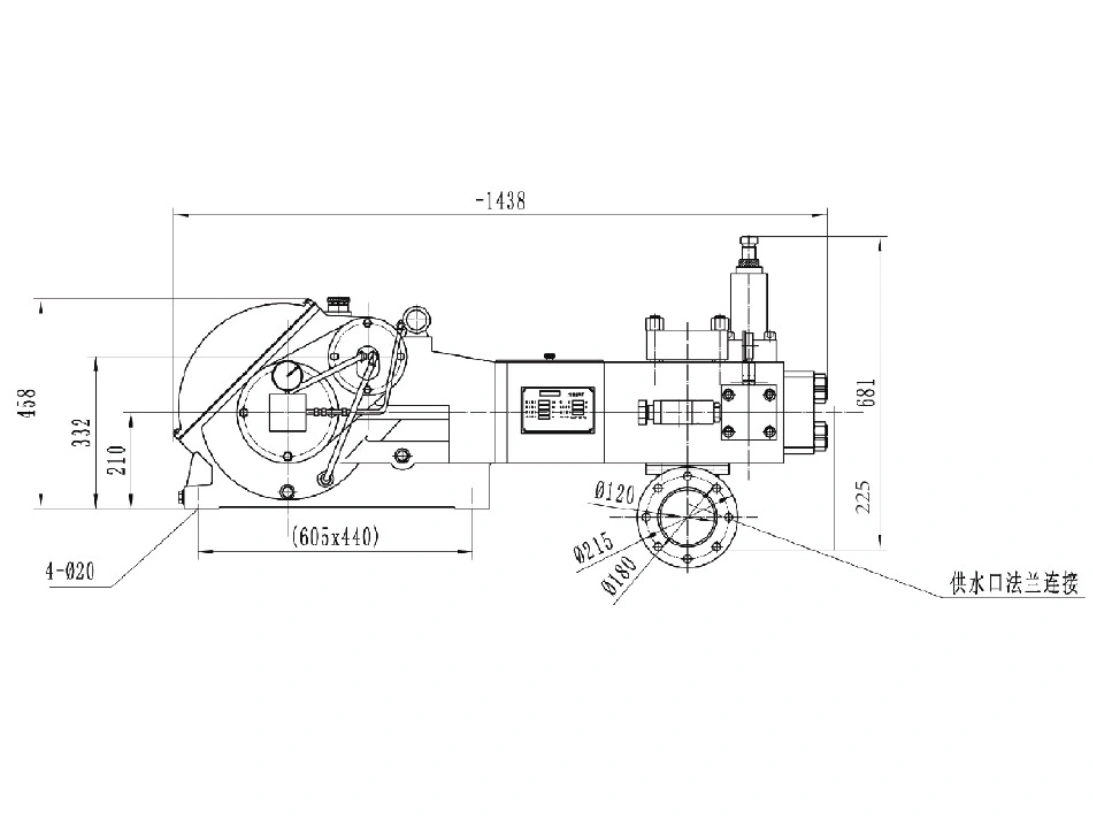

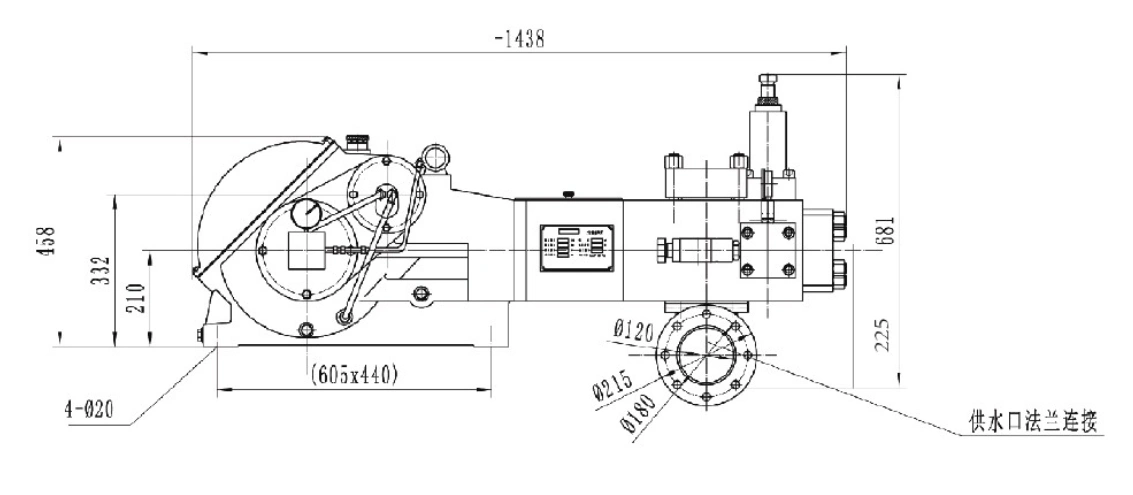

  • Dimensions: 1438×695×681 mm
  • Recommendation: When selecting a diesel engine, consider fuel economy by calculating the required power as 1.25 times the value listed in the table.
High Pressure Washer
High Pressure Washer
JN200K High-Pressure Triplex Plunger Pump (Driven by Electric Motor), Pump Speed: 366 min⁻¹
Plunger Dia. (mm) Input Speed (r/min) 1480 Pump Speed 366 Transmission Ratio i=4.04
Max. Pressure (MPa) under Motor Power below
Theoretical Flow 110 kW 132 kW 160 kW 200 kW
L/min m³/h
45 209 12.54 27 33 40 45
50 258 15.48 22 27 33 36
55 312 18.72 18 22 27 30
60 372 22.32 15 19 23 25
65 436 26.16 13 16 19 21
70 506 30.36 11 13 17 18
JN200K High-Pressure Triplex Plunger Pump (Driven by Diesel Engine), Pump Speed: 389 min⁻¹
Plunger Dia (mm) Input Speed (r/min) 1800 Pump Speed 389 Transmission Ratio i=4.619
Max. Pressure (MPa) under Motor Power below
Theoretical Flow 110 kW 132 kW 160 kW 200 kW
L/min m³/h
45 222 13.32 26 32 38 44
50 274 16.44 21 26 31 35
55 332 19.92 17 21 25 29
60 395 23.7 14 18 21 24
65 464 27.84 12 15 18 21
70 538 32.28 10 13 15 18
JN200K High-Pressure Triplex Plunger Pump (Driven by Electric Motor), Pump Speed: 320 min⁻¹
Plunger Dia. (mm) Input Speed (r/min) 1480 Pump Speed 320 Transmission Ratio i=4.619
Max. Pressure (MPa) under Motor Power below
Theoretical Flow 110 kW 132 kW 160 kW
L/min m³/h
45 183 10.98 32 38 44
50 226 13.56 25 31 35
55 273 16.38 21 25 29
60 325 19.5 18 21 24
65 382 22.92 15 18 21
70 443 26.58 13 16 18
JN200K High-Pressure Triplex Plunger Pump (Driven by Diesel Engine), Pump Speed: 445 min⁻¹
Plunger Dia. (mm) Input Speed (r/min) 1800 Pump Speed 445 Transmission Ratio i=4.04
Max. Pressure (MPa) under Motor Power below
Theoretical Flow 110 kW 132 kW 160 kW 200 kW
L/min m³/h
45 245 14.7 23 28 34 42
50 300 18 19 23 28 34
55 360 21.6 16 19 23 28
60 430 25.8 13 16 19 24
65 500 30 11 14 16 21
70 585 35.1 10 12 14 17

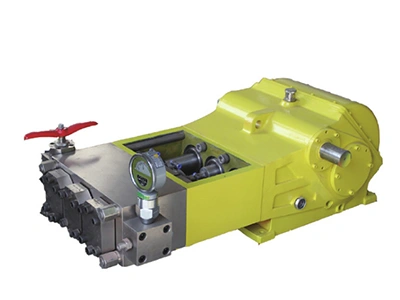

High-Pressure Water Injection Pump JN200Q

  • Max. pressure: 150 MPa
  • Max. flow: 119 L/min

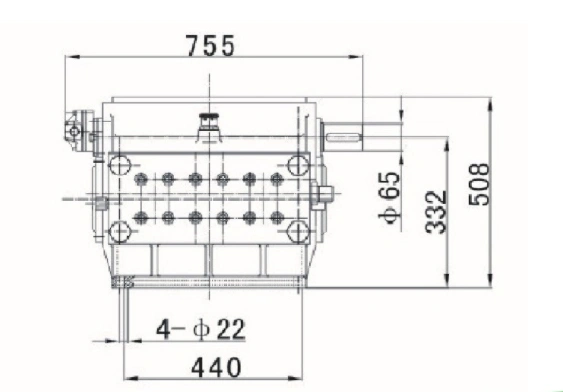

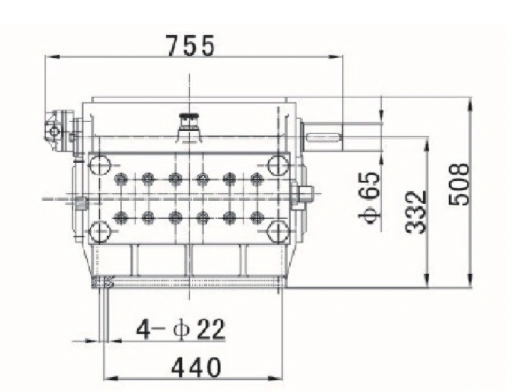

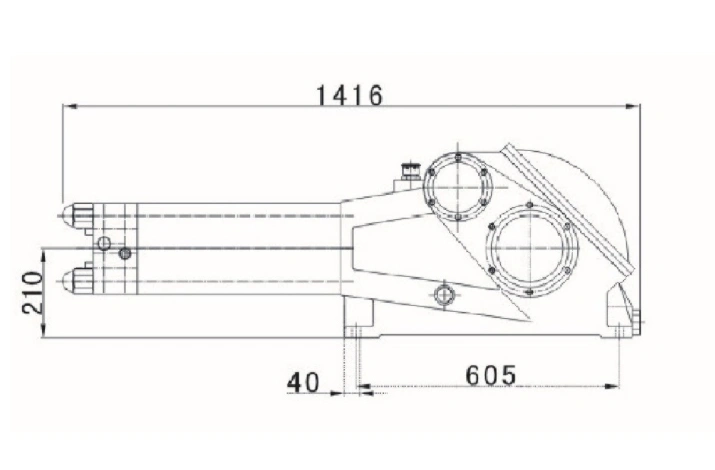

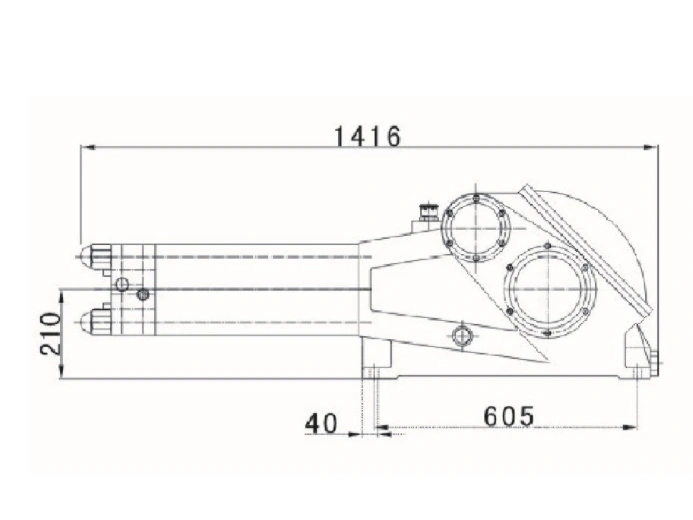

  • Dimensions: 1416×755×508 mm
High Pressure Washer
High Pressure Washer
High Pressure Washer
JN200Q Triplex High-Pressure Pump
Plunger Dia. (mm)
Input Speed (r/min)
1480 		Pump Speed 366 Transmission Ratio i=4.04
Max. Pressure (MPa) under Motor Power below
Theoretical Flow 90 kW 110 kW 132 kW 160 kW
L/min m³/h
20 40 2.4 115 140 150
22 50 3 95 120 140 150
24 60 3.6 80 100 115 140
26 70 4.2 70 85 100 120
28 80 4.8 56 70 85 100
30 93 5.58 50 60 70 90
34 119 7.14 38 46 57 70
