Cavitation Cleaning Pump
Cavitation cleaning pump for precision cleaning of industrial parts and components
- Max. pressure: 81 MPa
- Max. flow: 156 L/min

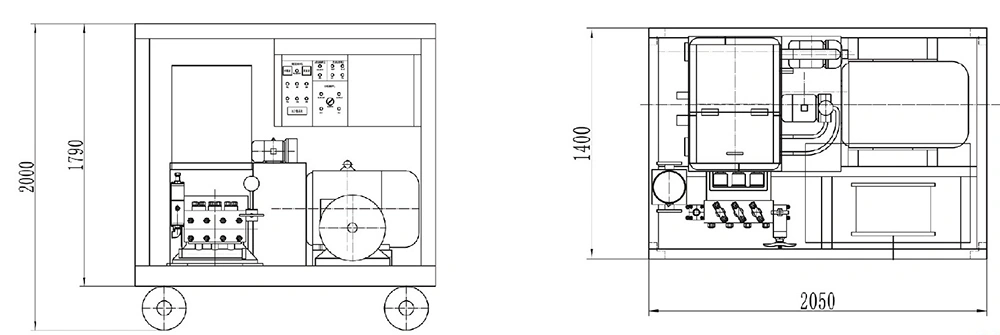

- Dimensions: 2050×2000×1400 mm
Request a Quote
This Cavitation Cleaning Pump adopts cavitation cleaning technology, an efficient and environmentally friendly cleaning method. It removes contaminants through micro-jets and shock waves generated by liquid cavitation effects. By utilizing cavitation (micro-jets and impact waves), it achieves efficient and residue-free cleaning. The power end uses a bearing-type transmission structure, and the lubrication system adopts splash lubrication, allowing continuous 24-hour operation without the need for cooling.
Features
- Automatic water replenishment function at low water level and automatic shutdown function at high water level
- The booster pump and main pump start and stop simultaneously
- The dissolved gas pump operates independently and is activated solely when cavitation-enhanced cleaning is required
Application Scenarios
This cavitation cleaning high-pressure washer is suitable for:
- Conveying tap water, deionized water, and softened water
- Precision cleaning of components in industrial manufacturing fields
Parameter Table
| Input Speed (r/min) | 1480 | Plunger Stroke (mm) | 100 | |||||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||||
| 22 | 37 | 45 | 55 | 75 | 90 | |||
| m³/h | L/min | Rated Pressure (MPa) | ||||||
| 1.00 | 17 | 63 | // | // | // | // | // | 15 |
| 1.80 | 30 | 36 | 64 | 78 | // | // | // | 20 |
| 2.90 | 48 | 22 | 40 | 49 | 60 | 81 | // | 25 |
| 4.20 | 70 | 15 | 28 | 35 | 42 | 57 | 70 | 30 |
| 4.80 | 80 | 13 | 26 | 32 | 39 | 53 | 62 | 32 |
| 5.70 | 95 | 11 | 21.5 | 26 | 32 | 44 | 50 | 35 |
| 7.38 | 123 | 8.7 | 16.5 | 20 | 25 | 34 | 40 | 40 |
| 9.36 | 156 | 6.9 | 12 | 16 | 19.5 | 26.5 | 30 | 45 |
