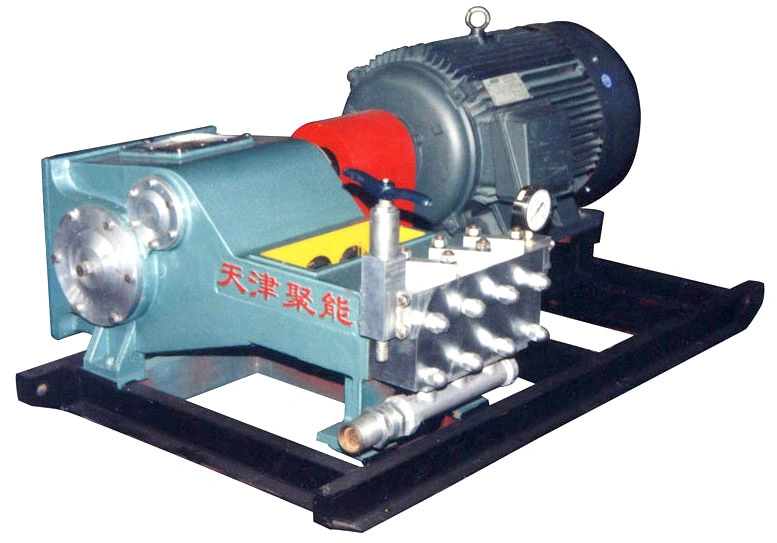

High-Temperature High-Pressure Water Injection Pump
High-pressure pumps capable of handling hot fluids up to 100°C for industrial cleaning and liquid transfer
- Max. pressure: 81 MPa
- Max. flow: 148 L/min
- Fluid temperature: ≤ 100°C

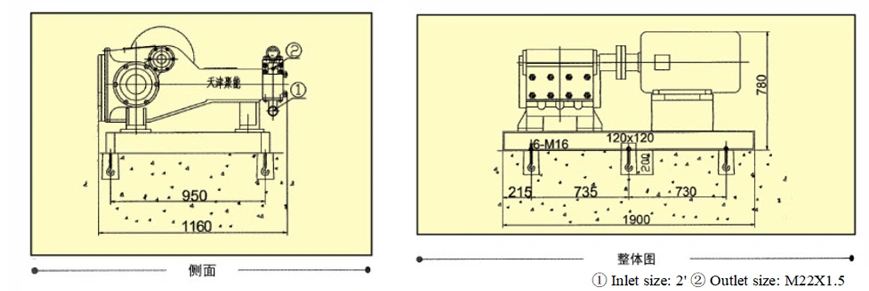

- Dimensions: 1900×1160×780 mm
SGW70 series high-pressure reciprocating pump can be used as a high-temperature, high-pressure hydraulic power source. The hydraulic end is equipped with a safety valve, throttle valve, and a self-contained system, with an adjustable throttle valve to meet different flow requirements. The power end adopts a shaft-type transmission structure between the crankshaft and connecting rod. The gears are manufactured using ground straight-tooth gear technology, ensuring low noise, minimal vibration, and smooth transmission. The pump uses splash lubrication, supports continuous 24-hour operation, and is equipped with a self-contained water-cooling system.
Juneng provides a wide range of optional accessories, including cleaning machines, valves, high-pressure hoses, and spray guns, as well as customized power source configurations based on customer requirements.
High-temperature, high-pressure water injection pump is suitable for:
- Cleaning of large- and small-diameter pipelines, ships, and workpieces, as well as rust removal and corrosion-layer cutting
- Conveying high-temperature water (≤100 °C), high-temperature emulsions, and water-like chemical liquids
| Input Speed (r/min) | 1480 | Plunger Stroke (mm) | 84 | |||||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||||
| 22 | 37 | 45 | 55 | 75 | 90 | |||
| m³/h | L/min | Rated Pressure (MPa) | ||||||
| 1.0 | 16 | 67 | // | // | // | // | // | 15 |
| 1.7 | 29 | 37 | 62 | 75 | // | // | // | 20 |
| 2.7 | 45 | 24 | 40 | 49 | 60 | 81 | // | 25 |
| 3.9 | 65 | 16 | 28 | 35 | 42 | 57 | 70 | 30 |
| 4.5 | 75 | 14 | 26 | 32 | 39 | 53 | 62 | 32 |
| 5.4 | 90 | 12 | 21.3 | 26 | 32 | 44 | 50 | 35 |
| 7.0 | 117 | 9 | 16.5 | 20 | 25 | 34 | 40 | 40 |
| 9.0 | 148 | 7 | 12 | 16 | 19.5 | 26.5 | 30 | 45 |
